Pirate Helmsman

Skeleton Pirate Helmsman Animatronic

This project was inspired by the iconic helmsman scene in Disneyland’s Pirates of the Caribbean. It became my very first attempt at building an animatronic—an exciting challenge that pushed me to explore mechanical design, motion control, and creative theming all in one.

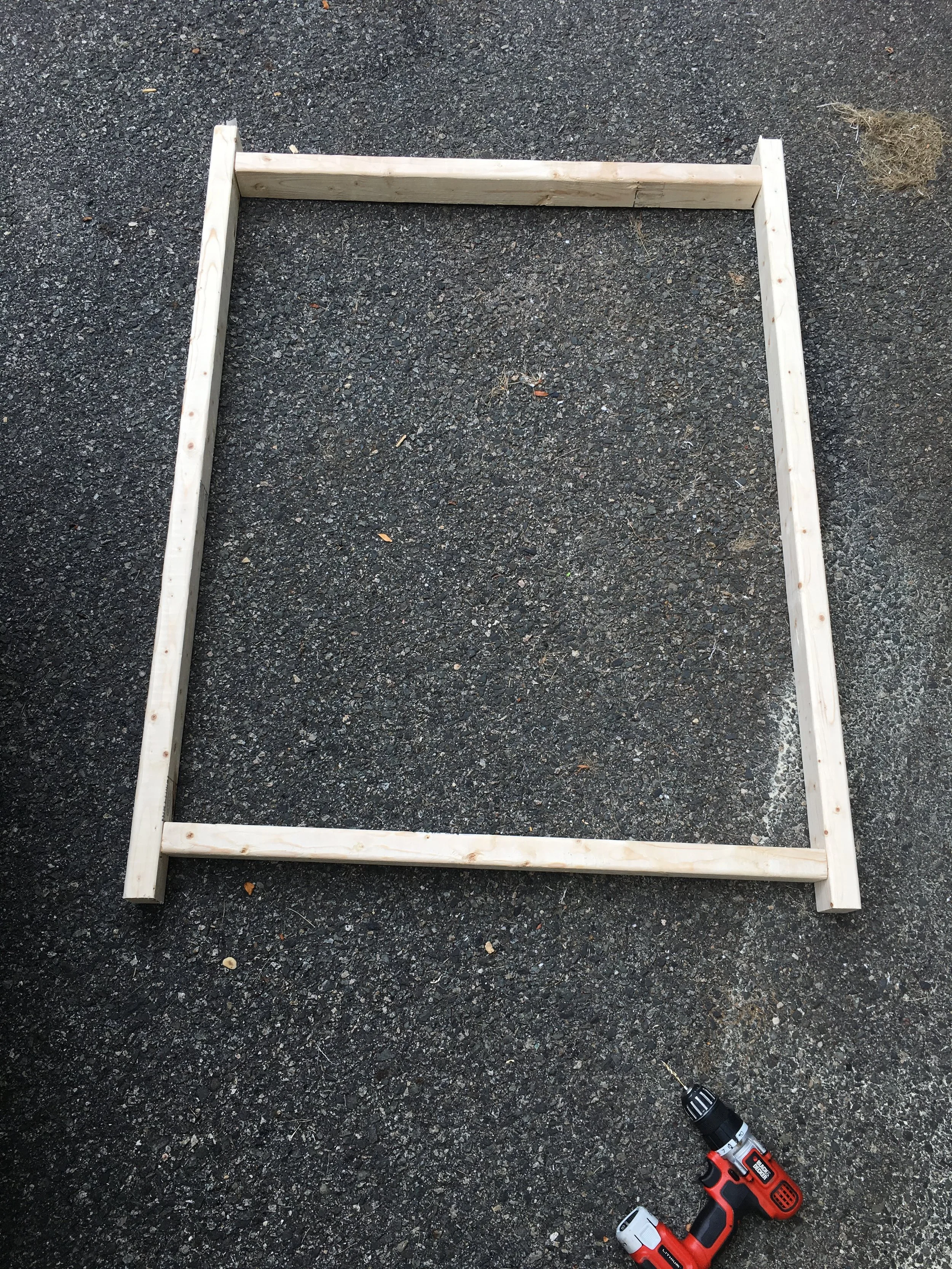

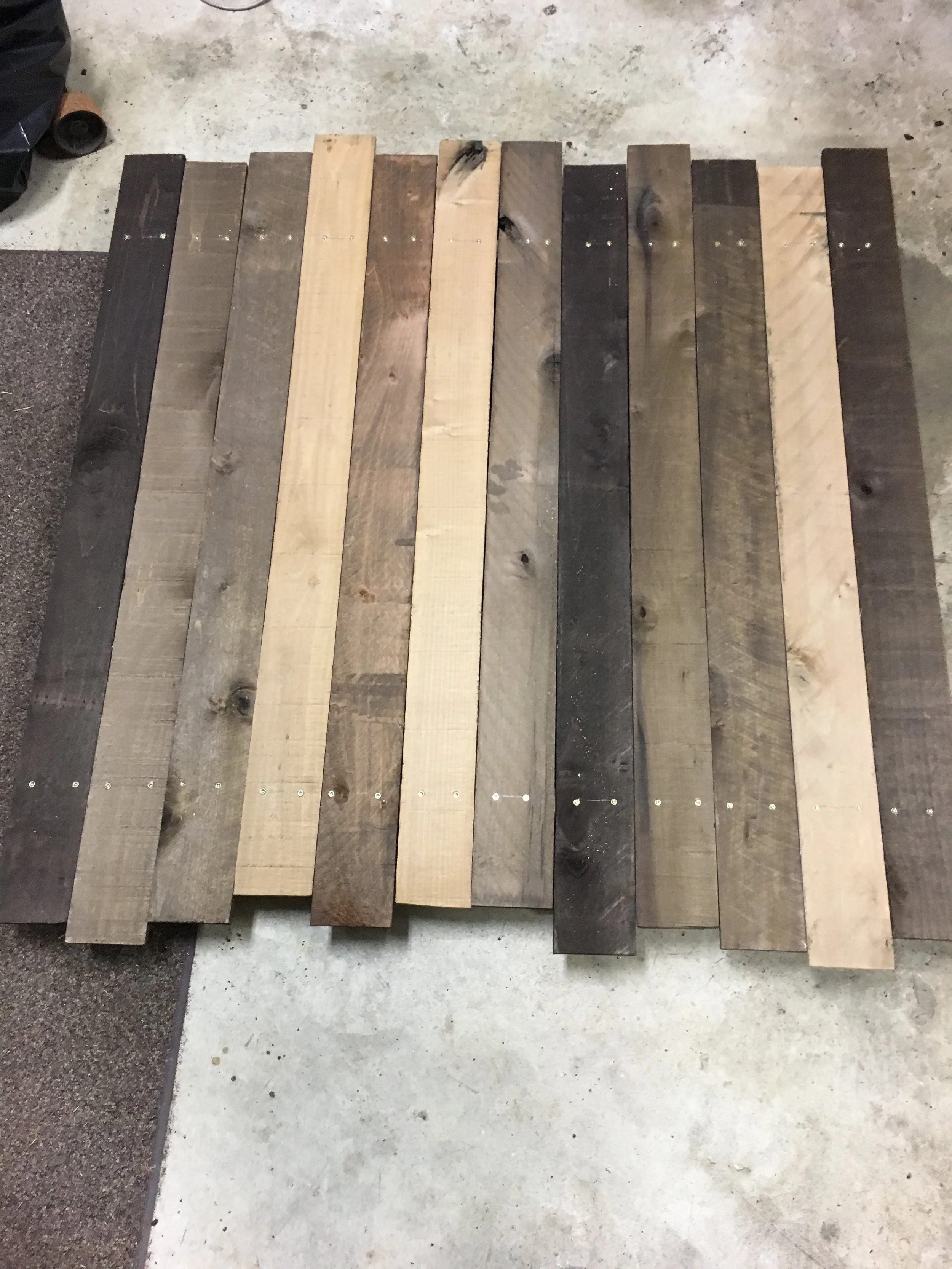

To set the stage, I constructed the pirate’s platform from basic lumber, cutting and distressing the wood to resemble the broken planks of a weathered ship deck. This created the foundation for the figure and set the tone for the scene.

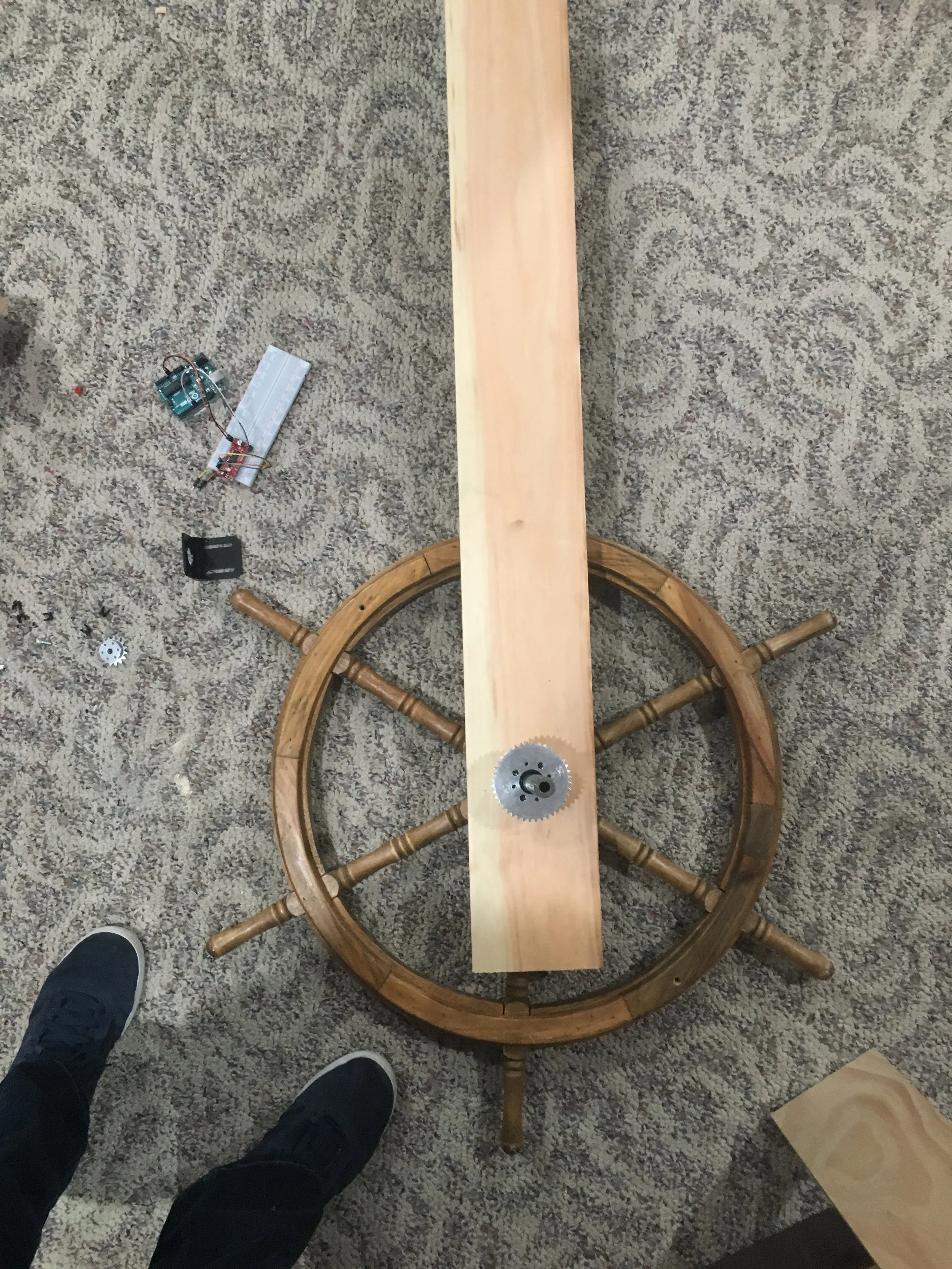

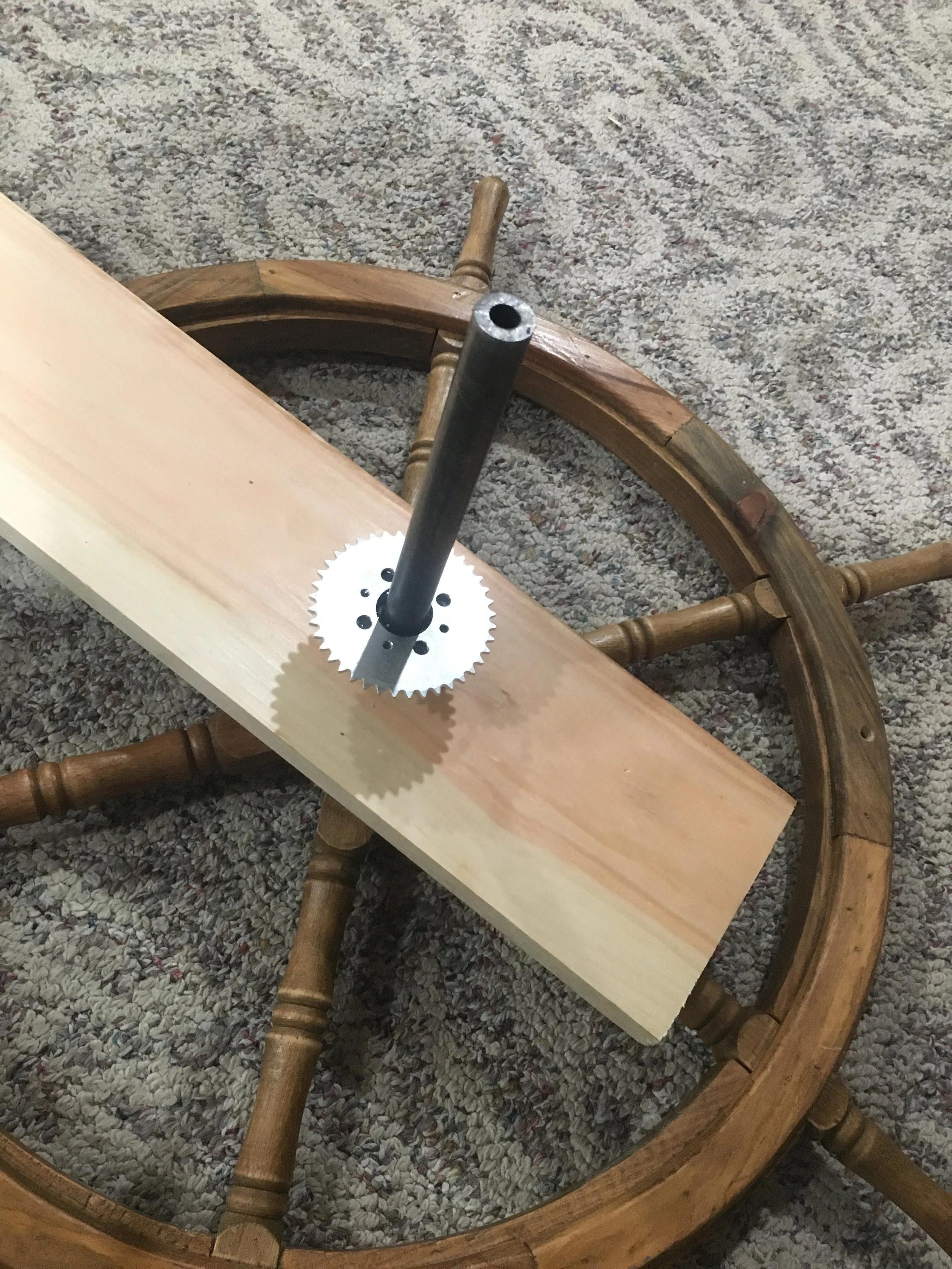

The real engineering challenge was bringing the ship’s wheel to life. My first design used a stepper motor connected to a rotating chain, but I quickly realized the torque wasn’t sufficient for the job. After troubleshooting, I switched to a stronger automotive wiper motor, which provided both the power and durability needed.

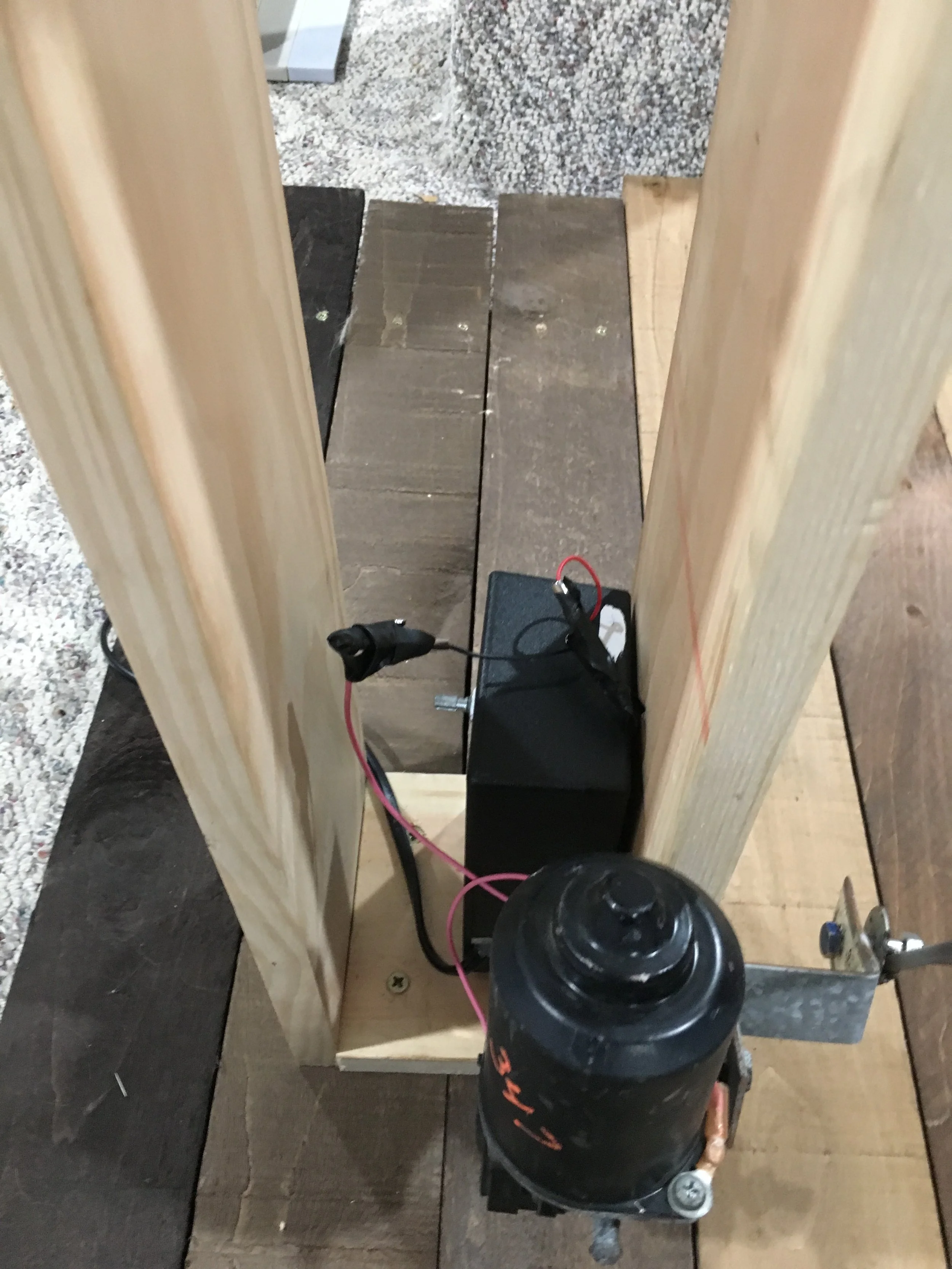

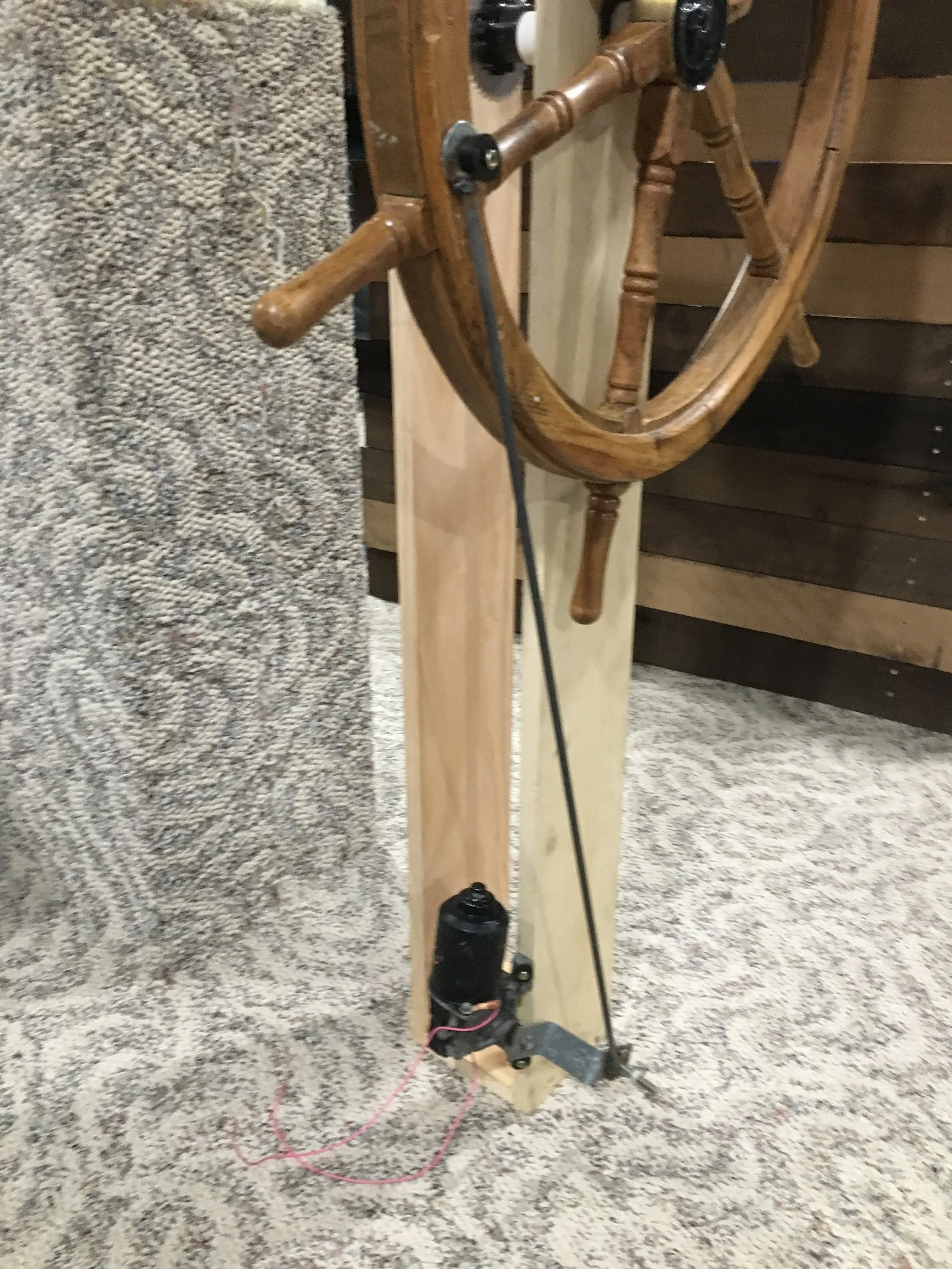

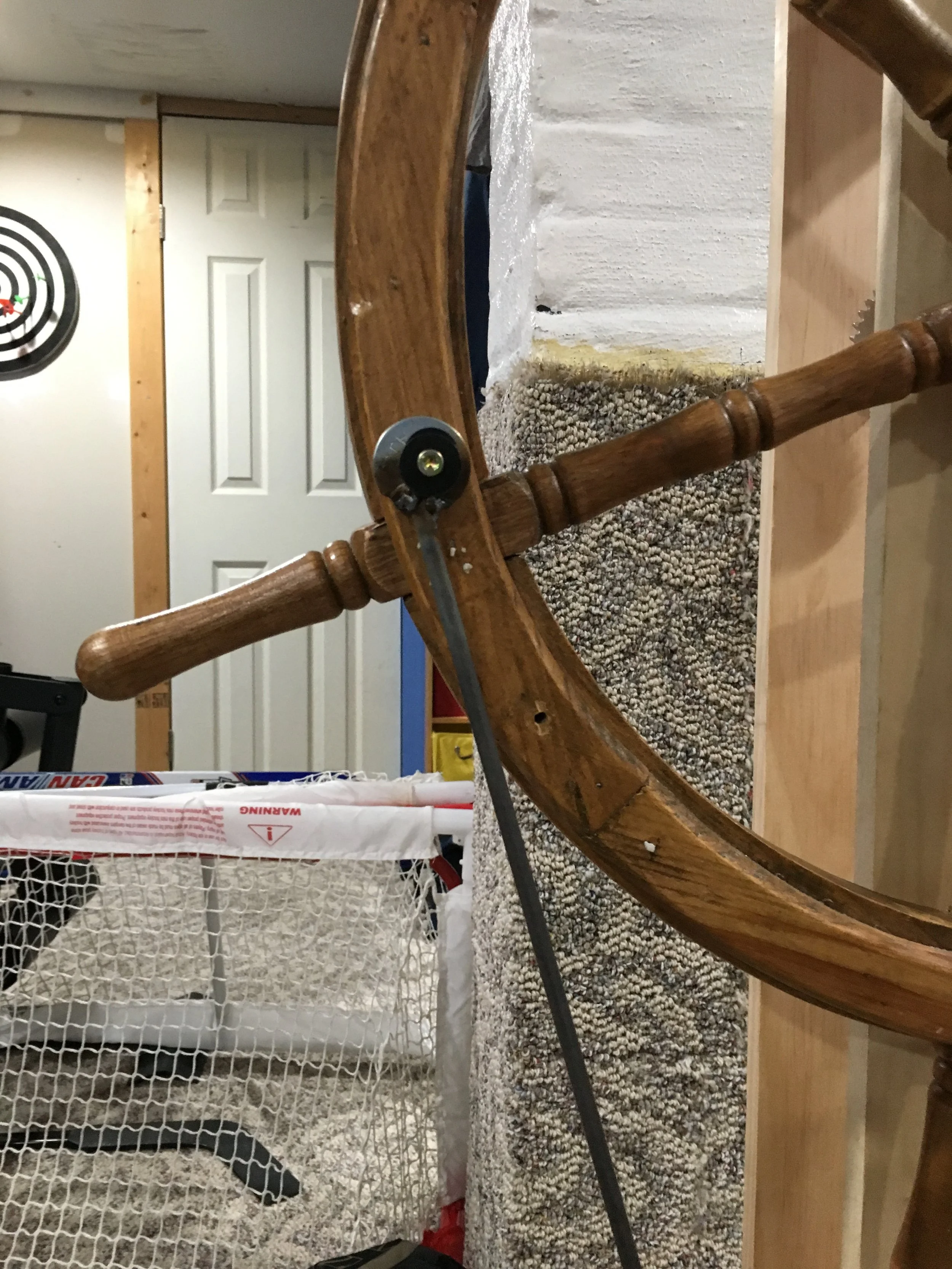

I mounted the wiper motor to the steering column, where it drove an arm connected directly to the wheel. This allowed the wheel to move back and forth in a realistic, repeating motion, simulating the pirate endlessly steering his ship through stormy seas. Designing and refining this mechanism taught me the importance of motor selection, torque requirements, and mechanical linkage design—key lessons that carried into later projects.

While the pirate itself was static, the moving wheel created the illusion of life and atmosphere. This project was not only my first animatronic, but also my introduction to blending theming, storytelling, and engineering—a foundation that continues to influence my design work today.
